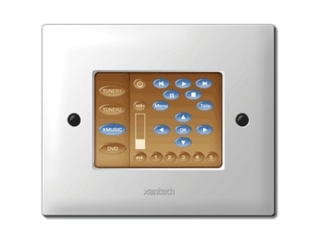

The SPLCD39G brings the convenience, elegance, and simplicity of a LCD touchscreen controller to a smaller sized, self-contained unit that fits in just about anywhere. Its 320 x 240 resolution with 256 colors provides remarkable graphics and clarity.

* Stand-alone device to output IR and/or RS232 commands
* Fully customizable display graphics
* XDT Station feedback, and XMUSIC song title navigation window of controlled component
* Internal pre-programmed IR code library, as well as capability to learn IR commands
* Built-in IR code library
* Built-in IR receiver
* SPLCDPS1 Power supply required
* Front panel IR learning eye
* Fully compatible with the MRC88 / MRAUDIO8X8 controllers with bi-directional status indication

Power Requirements: 16VDC, 500mA
RS232 Control Port (RS422 Requires RS422232 Controller)
Text Feedback Support (From MRC88, MRAUDIO8X8, OR XDT Dual Tuner)
System Capability: MRC44CTL, MRAUDIO4X4, MRC88CTL, MRAUDIO8X8
Volume Level Feedback (MRC88CTL, MRAUDIO8X8)
Dimensions: 3.53"H x 4.68"W x 1.52"D
Weight: 1.10 lbs. (0.5 kg)
