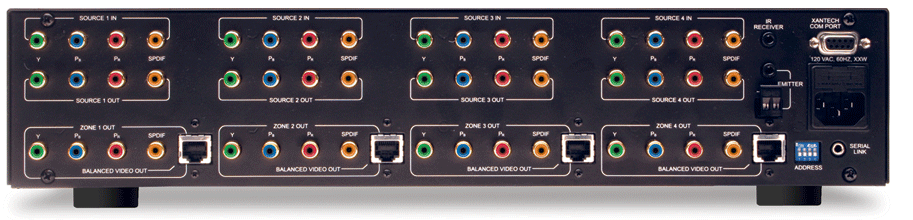

The HD44CC5 High Definition Component Video Matrix Switcher, allows high definition 1080i video and digital audio to
be sent up to 1000 feet over CAT5 cable with virtually no loss in signal quality.

Four-Source, Four-Zone High Definition matrix
video switcher with SD video capability
Buffered component video loopthrough and serial
port expansion capability allow expansion to up to
16 zones of distribution.
Component video inputs and S/PIDIF digital audio
inputs for each source component
4 Coaxial Component video + S/PIDIF digital audio
outputs for each zone for distribution up to 250 feet
Four RJ45 outputs for HD video and digital audio
distribution up to 1000 feet over CAT5 wire
Coaxial component video output and RJ45 output
active simultaneously
Controllable through IR and RS232 commands
Bandwidth supports resolutions of 1080i,
720p, 480p and 480i
