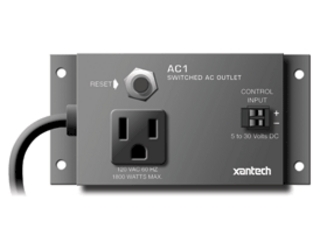

Xantech AC1 15 AMP Controlled AC Outlet
|
AC1
|
Retail Price: $145.00
Thunder AV Price: $119.95
You Save: $25.05 (17 %)
Call / Email for Availability
Detailed Description
- The AC1 is a control voltage switched outlet. It can be used for AC power management
- with the control output of any low voltage DC source (5-30VDC).
- SPECIFICATIONS
- • Maximum Switching Current: 15 Amps continuous, 30 Amps peak inrush, at 120 VAC, 60 Hz.
- • AC Circuit Breaker: Opens if AC current exceeds 15 Amps. Push-to-Reset button.
- • AC Power Cord: 120 VAC 16 gauge 5 ft., 3-conductor.
- • Standby AC Line Current: < 2 mA (< .24 Watts).
- • Control Input: Plug-in screw-type terminals for two-conductor connections. Handles wire sizes from 24
- to 12 gauge.
- • Control Input Turn-ON Voltage Range: 5 to 30 Volts DC, @1.5 mA/V.
- • Control Input Turn-OFF Voltage: <2 Volts DC.
- • Flanges, plus supplied screws, permit easy mounting to flat surfaces.
- • Dimensions: 4-15/16" L x 2-1/2" W x 2-5/8" H (125mm x 64mm x 67mm
