Key Advantages
New Technology Remote Start
Virtual Tach eliminates tach wire connection
Flex Relays usually eliminates external relays
Control Center incorporates LED and switch
- no drilling holes in the dash
D2D and XpressPort make data interface
plug and play:
- bypass is simpler and faster than ever
- many Directed interfaces also include keyless
and OEM security integration automatically
OEM Security AlertTM pages the user if the
OEM security system horn triggers.
Classic Directed features:
Onboard door lock relays w/progressive unlock
AUX outputs configurable:
- pulse
- validity (as long as pressed)
- med
- latched
- Owner Recogniton assignable
Timer Start, Smart Start (Timer+temp+voltage)
Take-Over Mode
AntiGrind
Basics:

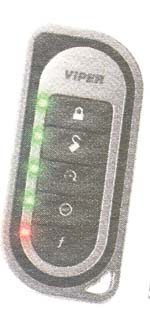

The Viper 5301 uses our award-winning
Responder LE 2-way remote control (plus
a one-way companion), and our premium
remote start platform (the New Technology
platform) to deliver excellent performance.

Changes from previous unit:
- New Technology features
- Virtual Tach
- D2D and XpressPort ports
- Onboard relays, plus Flex Relays
- Manual Transmission support
- Control Center
- OEM Security Alert (RS only)
- TempCheck and Run me Reset
- PriorityTM user interface
- Responder LE 2-way remote
- Ghostlight invisible indicators
- 2000 range with SuperCode
- Consumer presentation inner box
Wait-to-start and Timed-cranking modes

Replaces: Python 571XV (572V)
Step Up from: Python 4102V 1-way

Remotes and IVU antennas
2-way: 7251V
1-way: 7152V (can also use 7153V)

IVU antenna: 6111T
Notes:
- Requires Bitwriter 998U V 2.6 (plus 998M for
older Bitwriters, see Directed TechTips)
- To plug in XpressKit modules to the D2D port,
a XKD2D65 cable may be required for older XK
modules. Newer Xpresskit modules will ship
with the cable in the kit. Directed D2D cables
are different from other makers D2D cables.
