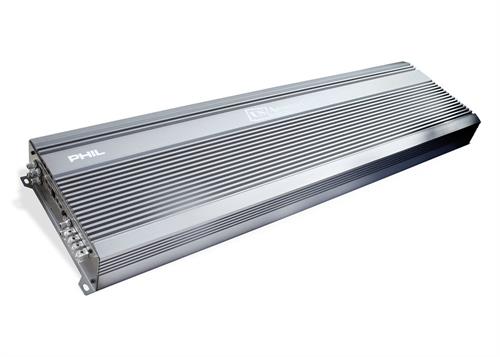

US Acoustics PHIL 8000W RMS at 1 Ohm Competition Class D Amplifier 16000W Max
|
PHIL
|
Retail Price: $1,999.95
Thunder AV Price: $1,699.00
You Save: $300.95 (15 %)
* Whole number only
Detailed Description
- 1 x 8000 Watts RMS @ 1 Ohm
- Thermally Stable Heat Sink design for maximum heat transfer efficiency
- 3 x 0 Gauge Power + Ground Input Connectors
- Extreme Bulk capacitor banks for High Power Stability
- Designed with the latest Technology in Ultra Efficient Class D design
- DC, Short Circuit, Thermal and Overload Protection
- Diagnostic LEDs
- Clipping LED Indicator
| OUTPUT POWER @ 14.4V input |
Less than 1% THD |
| RMS per channel at 4 Ohms |
2000 W x 1 CH |
| RMS per channel at 2 Ohms |
4000 W x 1 CH |
| RMS Bridged Mono at 4 Ohms |
N/A |
| RMS Mono at 1 Ohm |
8000 W x 1 CH |
| INPUT SENSITIVITY |
200 mV - 6.0 V |
| FREQUENCY RESPONSE |
14 Hz - 248 Hz +/- 1 dB |
| S/N RATIO |
> 95 dB |
| EFFICIENCY (4?, 100 Hz) |
> 95 % |
| DAMPING FACTOR @100Hz 4 ohm |
Greater than 300 |
| CROSSOVER RANGE |
|
| Low Pass, 24 dB/Octave |
35 Hz - 250 Hz |
| Subsonic |
10 Hz - 50 Hz |
| Wired remote bass control included |
Yes |
| Phase Shift (0 - 180 degrees) |
Yes |
| Fusing (not supplied) |
External 700 A |
| Size (L x W x H) in |
32.75 x 8.9 x 2.72 |
Thunder AV Price: $695.95
