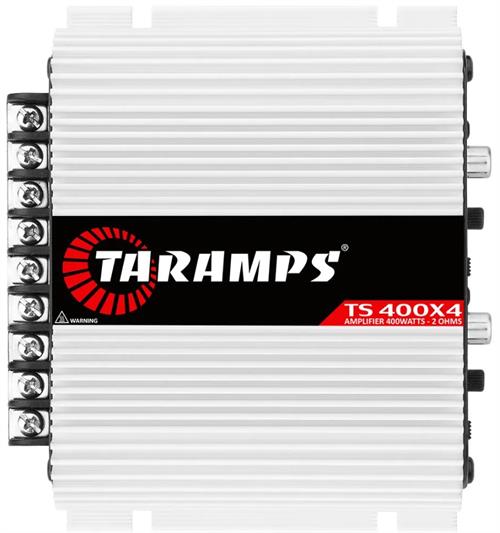

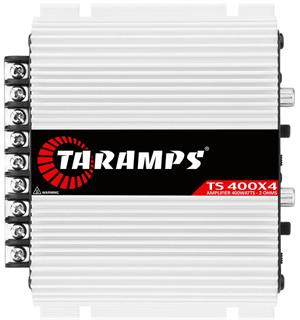

Taramps TS 400X4 4 x 63W RMS at 4 Ohms Class D Full Range Amplifier
|
TS 400X4
|
Retail Price: $99.99
Thunder AV Price: $73.95
You Save: $26.04 (26 %)
* Whole number only
Detailed Description
- The TS 400×4 is designed with the highest performance to suit most types of car audio systems. It is multichannel, with 4 channels of 100 Watts RMS, with a maximum power of 400 Watts RMS at 2 Ohms. The TS 400×4 is a FULL RANGE amplifier. It features thermal and short-circuit protection, plus LED indicator and crossover.
- 2 OHMS VERSION Nominal Power @13.8VDC
- 2 Ohms: 400W RMS (4 x 100W RMS)
- 4 Ohms: 252W RMS (4 x 63W RMS)
- 2 Bridged Channels
- 4 Ohms: 400W RMS (2 x 200W RMS)
- NUMBER OF CHANNELS 04
- INPUT SENSITIVITY 200mV
- SIGNAL TO NOISE RATIO >90dB
- FREQUENCY RESPONSE 18Hz ~ 30KHz (-3dB)
- CROSSOVER HIGH PASS (HPF) 90Hz (-12dB/8ª) Fixed
- CROSSOVER LOW PASS (LPF) 90Hz (-12dB/8ª) Fixed
- INPUT IMPEDANCE 22K ohms
- OUTPUT IMPEDANCE 2 Ohms
- PROTECTION SYSTEM Thermal and Output Short
- MINIMUM SUPPLY VOLTAGE 8VDC
- MAXIMUM SUPPLY VOLTAGE 16VDC
- CONSUMPTION AT REST 0.8A
- MAXIMUM MUSIC CONSUMPTION 16.5A
- MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 33A
- DIMENSIONS (WXHXD) 5.433 x 1.929 x 4.763 inches (138 x 49 x 121 mm)
- WEIGHT 1.322 lbs (0.60kg)
- EAN 7898556840682
