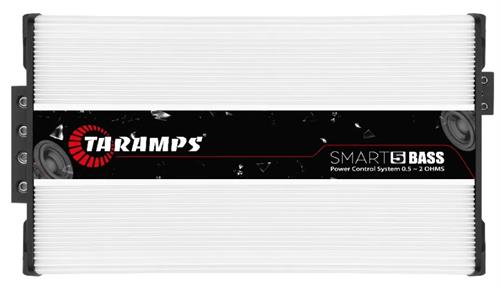

Taramps SMART 5 BASS 5000W RMS at 0.5 - 2 OHMS Multi Impedance Amplifier
|
SMART5BASS
|
Retail Price: $599.99
Thunder AV Price: $539.00
You Save: $60.99 (10 %)
* Whole number only
Detailed Description
The Smart 5 BASS is another innovation by Taramps. Aiming at car audio systems. The exclusive Power Control System technology, now specific for subwoofers, ensures even more quality at low frequencies delivering more security by monitoring the whole amplifier operation, It is multi-impedance, single-channel amplifier, that is, it delivers the 5000 WRMS in any impedance between 0.5 and 2 Ohms. It has an indicative logo that you already know, robust power input, connecting cables up to 2 x 2/0 AWG (70mm²) and output for CLIP monitor. Feel the bass in an unforgettable way!
- NUMBER OF CHANNELS 1
- MAXIMUM POWER Nominal Power @14.4VDC
- 0.5 Ohm: 5000W RMS
- 1 Ohm: 5000W RMS
- 2 Ohms: 5000W RMS
- 4 Ohms: 2700W RMS
- INPUT SENSITIVITY 4V ~ 0.2V
- SIGNAL TO NOISE RATIO >90dB
- FREQUENCY RESPONSE 8Hz ~ 200Hz (-3dB)
- CROSSOVER HIGH PASS (HPF) 8Hz ~ 30Hz (-12dB/8ª) Variable
- CROSSOVER LOW PASS (LPF) 60Hz ~ 200Hz (-12dB/8ª) Variable
- BASS BOOST Freq.: 35Hz ~ 55Hz
- Boost: 0 ~ +10dB
- EFFICIENCY 76% @ 0.5 Ohm | 80% @ 1 Ohm | 84% @ 2 Ohms
- INPUT IMPEDANCE 10K Ohms
- OUTPUT IMPEDANCE 0.5 ~ 2 Ohms
- PROTECTION SYSTEM Short on output
- Short on output in relation to GND
- Low impedance protection
- High/low voltage protection
- Thermal protection.
- MINIMUM SUPPLY VOLTAGE 9.5VDC
- MAXIMUM SUPPLY VOLTAGE 17VDC
- CONSUMPTION AT REST 2.60A
- MAXIMUM MUSIC CONSUMPTION 230A @ 0.5 Ohm | 215.5A @ 1 Ohm | 210A @ 2 Ohms
- MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 461A @ 0.5 Ohm | 431A @ 1 Ohm | 420A @ 2 Ohms
- DIMENSIONS (WXHXD) 9.37" x 2.79" x 16.8" (238 x 71 x 427mm)
- WEIGHT 12.79 lbs (5,80Kg)
- EAN 7898556847483
