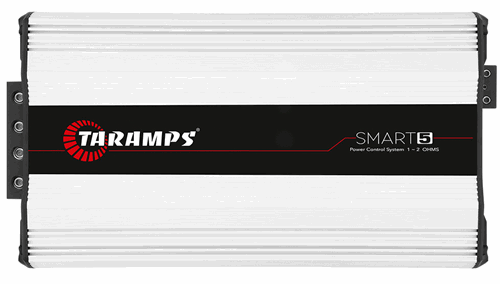

The SMART Line that you already know now has a new member! The SMART 5 amplifier present the highest technology and performance for car audio systems. With the advantage of being multi-impedance, delivering 5000WRMS between 1 and 2 ohms, additionally, the Power Control System technology ensures greater performance and safety. The renowned V.U. with Smart LED, distinctive of the line, assures a unique design. It has an input gain adjustment that allows the use of players up to 4V RMS output level. Its robust connector allows the use of larger gauge power cables for higher performance. It is an exclusive TARAMPS product with the best cost-benefit ratio in the car audio industry.

*This product comes with the M1 MONITOR LED.

• NUMBER OF CHANNELS 1
• MAXIMUM POWER Nominal Power @12.6VDC
• 1 Ohm: 5000W RMS
• 2 Ohms: 5000W RMS
• 4 Ohms: 2900W RMS
• INPUT SENSITIVITY 0.22V ~ 4V
• SIGNAL TO NOISE RATIO >90dB
• FREQUENCY RESPONSE 10Hz ~ 10KHz (-3dB)
• CROSSOVER HIGH PASS (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable
• CROSSOVER LOW PASS (LPF) 90Hz ~ 10KHz (-12dB/8ª) Variable
• BASS BOOST Freq.: 35Hz ~ 55Hz
• Boost: 0 ~ +10dB
• EFFICIENCY 84% @ 1 Ohm | 86% @ 2 Ohms
• INPUT IMPEDANCE 10K Ohms
• OUTPUT IMPEDANCE 1 ~ 2 Ohms
• PROTECTION SYSTEM Output short circuit
• low/high voltage protection
• thermal protection.
• MINIMUM SUPPLY VOLTAGE 9.5VDC
• MAXIMUM SUPPLY VOLTAGE 17VDC
• CONSUMPTION AT REST 3.60A
• MAXIMUM MUSIC CONSUMPTION 236A @ 1 Ohm | 230A @ 2 Ohms
• MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 472A @ 1 Ohm | 460A @ 2 Ohms
• DIMENSIONS (WXHXD) 8.97" x 2.75" x 16.85" (228 x 70 x 428mm)
• WEIGHT 11.24 lbs (5,10Kg)
• EAN 7898556847391
