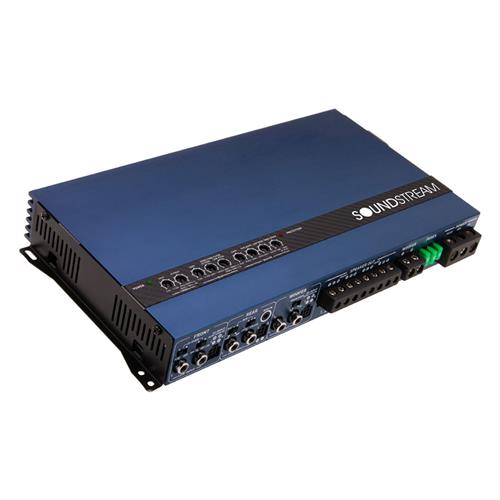

We’ve adopted the most optimum Class D performance, reliability, and smaller footprint platform for the Rubicon Nano series amplifiers and present to you Rubicon Nano. At first glance, you’ll notice several key improvements; Rubicon Nano’s signal inputs, power/ground, and speaker connections are all relocated to the leading edge of the chassis for an easier, more attractive install. All pre-amp & crossover options are appropriately located on the top surface, making adjustments after installation conceivable. You might not notice embellishments to the circuit board, including increased power supply & output stage components & Monoblock bridging capability.

Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)

• SPECIFICATIONS RN5.2000D
• Max Power 2,000 Watts
• RMS Power @ 4Ω 75W x 4 + 300W
• RMS Power @ 2Ω 100W x 4 + 500W
• RMS Bridged @ 4Ω 200W x 2 + 500W (2Ω)
• Remote Gain Control Included
• Low Pass Filter 50Hz-500Hz / (x10) 500Hz-5KHz
• High Pass Filter 50Hz-500Hz / (x10) 500Hz-5KHz
• Bass Boost 0-18dB (Ch 5)
• Bass Boost Frequency 45Hz (Ch 5)
• Subsonic Filter 20Hz-50Hz (Ch 5)
• Frequency Response 10Hz-50KHz (Ch 1-4) / 10Hz-150Hz. (Ch 5)
• S/N 104dB
• Input Sensitivity 200Mv-6V
• THD <0.05%
• Operation Voltage 9V-16V DC
• Fuse Rating 30A x 3
• Dimensions (8.25″W x 2.75″H) 12″ L
