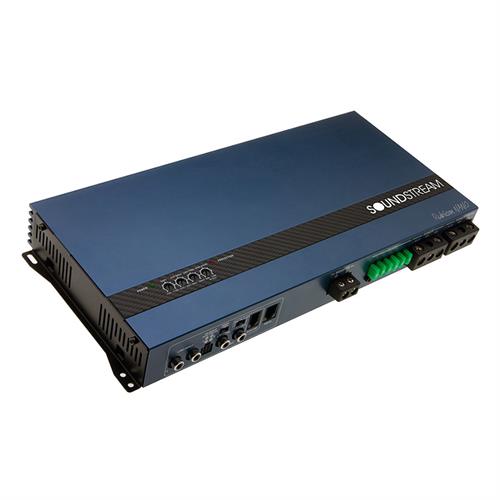

We’ve adopted the most optimum Class D performance, reliability, and smaller footprint platform for the Rubicon Nano series amplifiers and present to you Rubicon Nano. At first glance, you’ll notice several key improvements; Rubicon Nano’s signal inputs, power/ground, and speaker connections are all relocated to the leading edge of the chassis for an easier, more attractive install. All pre-amp & crossover options are appropriately located on the top surface, making adjustments after installation conceivable. You might not notice embellishments to the circuit board, including increased power supply & output stage components & Monoblock bridging capability.

Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)

• SPECIFICATIONS RN1.5000D
• Max Power 5,000 Watts
• RMS Power @ 4Ω 1,000W x 1
• RMS Power @ 2Ω 1,500W x 1
• RMS Power @ 1Ω 2,500W x 1
• Remote Gain Control Included
• Low Pass Filter 50Hz-500Hz
• High Pass Filter N/A
• Bass Boost 0-12dB
• Bass Boost Frequency 45Hz
• Subsonic Filter 20Hz-50Hz
• Frequency Response 20Hz-22KHz
• S/N 104dB
• Input Sensitivity 200Mv-6V
• THD <0.1%
• Operation Voltage 9V-16V DC
• Fuse Rating 30A x 6
• Dimensions (8.25″W x 2.75″H) 17.75″ L
