Russound VBC Component Video Active Balun Kit to send Composite AV Over CAT5 up to 1000 ft
|
VBC
|
Retail Price: $199.00
Thunder AV Price: $141.25
You Save: $57.75 (29 %)
Call / Email for Availability
Detailed Description

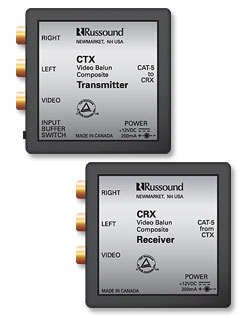

Description The VBC Composite Audio-Video Active Balun Kit includes the CTX Transmitter module, the CRX Receiver module and a power supply (for either module) to send composite video and audio over CAT-5 up to 1000 feet point to point. Features Active circuitry (powered) eliminates signal loss Exceptional signal quality hi-fi quality sound, and accurate video signals Remotely locate sources up to1000 feet without signal degradation Cost effective connects with inexpensive CAT-5 wire Specifications CTX Transmitter Input connectors:(1) composite video RCA jack (2) left and right audio RCA jacks Output connector: 8-pole modular RJ-45 jack, T568A Audio input impedance:20 kilohms Audio input level: 3 V maximum peak to peak Weight:2.6 oz (73 g) CRX Receiver Input connector:8-pole modular RJ-45 jack, T568A Output connectors:(1) composite video RCA jack (2) left and right audio RCA jacks Weight:2.4 oz (69 g) VBC Kit Cable type:CAT-5 Maximum cable length:1000 ft (305 m) Video format:Composite Video bandwidth: 100 MHz +0/3 dB Video signal level: 0.5 V to 2 V Audio format: 2-channel analog Audio and video gain: Unity Power requirement: 12 VDC 200 mA max(adapter included) Module dimensions: 2.75 W x 2.64 H x 1
Retail Price: $100.00
Thunder AV Price: $55.20
You Save: $44.80 (45 %)
| | | |
Product Reviews
|
|
|
