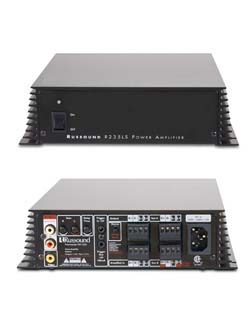

Russound R235LS 2 x 35 Watt @ 8 Ohms Amplifier
|
R235LS
|
Retail Price: $299.00
Thunder AV Price: Discontinued
Call / Email for Availability
Detailed Description
Closest Replacement is the Russound X75 or D250LS
Description
The R235LS 2-channel amplifier has a space-saving low profile design with automatic local source switching capability.
The R235LS allows a local source (e.g., PC or TV in the bedroom) to automatically override the speakers in that particular zone of a distributed audio system. This can be accomplished with its autosensing line input or with its trigger input for versatility in many different applications.
The R235LS is rated at 35 watts per channel into 8 ohms and 50 watts per channel into 4 ohms. In bridged mode the R235LS is rated at 100 watts of power into a single 8-ohm load. Each amplifier output channel incorporates robust protection circuitry for safety and reliability under extreme circumstances.
Features
Autosensing line input activates amplifier upon detecting an audio signal
Automatic switching of speakers between a local source input and distributed audio system sources
Space-saving low profile design permits use in areas most amplifiers will not fit
Bridgeable to create one channel with substantial power output
Reliable and robust circuity designed for long-term stability
Specifications
Stereo Continuous Output Power:
35W per channel at 8 ohms
50W per channel at 4 ohms
Bridged Mono Output Power:
100W at 8 ohms
Distortion:<0.05% THD+N from 20Hz to 20kHz
Signal-to-Noise Ratio:>100dB A-weighted
Frequency Response:20Hz to 20kHz 0.3dB
Input Sensitivity: 70m V for 1W at 8 ohms 420mV for 35W at 8 ohms
Line Input Impedance: 47 kilohms
Voltage Gain: 32dB
Delay Time: 5 seconds to 4.5 minutes
Input Trigger: 12VDC 10 kilohms
Output Trigger: 12VDC 100mA max
Power Requirements:
North America: 120VAC 60Hz 1.2A
Europe: 230VAC 50Hz 0.6A
Dimensions: 8.625" W x 10"D x 2.375"H (22 x 25.4 x 6 cm)
Weight: 8.5 lbs. (3.8kg)
