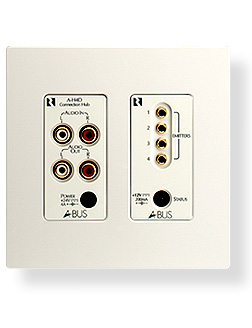

Russound A-H4D Flush Mount Decora A-BUS 4-room, 1-source Audio Distribution Hub
|
A-H4D
|
|
1 source audio input, with source loop out
4 Amplified Keypad or Volume Control Module connections, 110 punch downs
4 common IR outputs, with IR confirmation LED
Status power input
Power input
Double Gang, Decora Flush-Mount Hub
|
Retail Price: $199.00
Thunder AV Price: $134.95
You Save: $64.05 (32 %)
Call / Email for Availability
Detailed Description
- Description
- The A-H4D is a flush-mount, Decora A-BUS 4-room, 1-source Audio Distribution Hub used with A-BUS Amplified Keypads and Amplified Volume Control Modules, models A-KP2 and A-VC2. All A-BUS systems require an A-PS, A-BUS Power Supply, to operate and supply the A-BUS system components with power. The A-H4D can be expanded using an A-BUS expansion Hub, A-H4DX, in order to increase the number of rooms in a system.
- IMPORTANT Before installation, review the manuals included with each component in your system. If you are unsure of any of the installation procedures described herein or elsewhere, consult a professional electronics installer. Connect up to four A-BUS amplified keypads or amplified volume control modules, models A-KP2 or A-VC2, 4 micro IR emitters, and 12VDC status.
- Features
- 1 source audio input, with source loop out
- 4 Amplified Keypad or Volume Control Module connections, 110 punch downs
- 4 common IR outputs, with IR confirmation LED
- Status power input
- Power input
- Double Gang, Decora Flush-Mount Hub
- Expansion Port Specifications
- Power Supply: A-PS. 24 VDC / 4 A.
- Status Power: 12 VDC / 100 mA.
- Keypad Connection: 110 Punch Down, T568A Standard
- Expansion Connection: 8 pin female connector to header Pins
- Emitter Connections: 1/8" Male. Tip (+), sleeve ()
- Dimensions: 3.54"W x 2.91"H x 1.45"D (165x76x32mm)
- Weight: 8 oz. (226g)
