UPC 818550019485

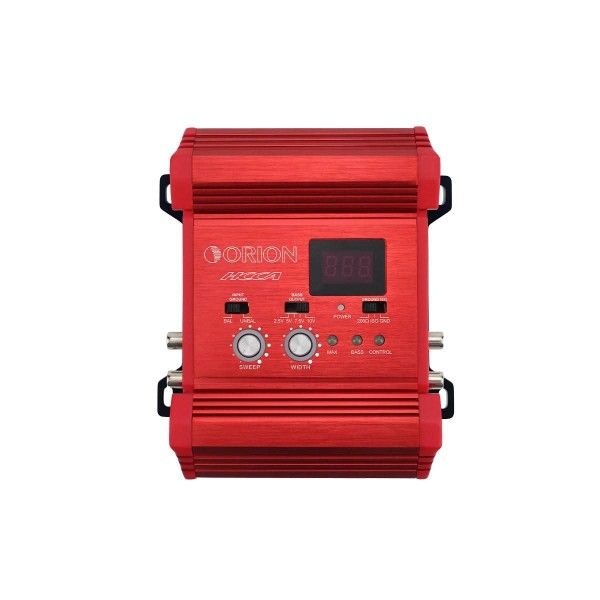

• HCCA High Performance Bass Processor: Designed for high-power car audio systems to deliver deep, controlled bass enhancement for subwoofer setups.
• Bass Restoration Technology: Recovers low-frequency information lost in compressed or factory audio signals for stronger, more impactful bass.
• Sweep Frequency Control: Adjusts the center frequency of the bass enhancement to target the exact bass range you want to emphasize.
• Width Bandwidth Control: Allows tuning of the bass restoration range for wide deep bass response or tighter, punchier bass.
• Selectable High Voltage Output: Choose between 2.5V, 5V, 7.5V, or 10V output levels to match your amplifier’s input sensitivity and maximize signal strength.
• Voltage Meter Display: Built-in voltage display allows real-time monitoring of your system’s operating voltage.
• Balanced / Unbalanced Input Selection: Ensures compatibility with both factory radios and aftermarket head units.
• Ground Isolation Control: Helps eliminate alternator noise and electrical interference.
• Remote Bass Control Support: Allows real-time bass adjustment from the driver’s seat using the included remote bass knob.
• Competition-Grade Signal Processing: High signal-to-noise ratio and ultra-low distortion ensure clean bass output even in extreme systems.

• Power Supply: 6.5V – 18V
• Maximum Input Level: 10V
• Maximum Output Level: 10.5V
• Input Sensitivity: 10.7V
• Input Impedance: >50K Ohms
• Output Impedance: 100 Ohms
• EQ Boost / Cut: 15 dB
• Signal-to-Noise Ratio: >110 dB
• THD @ 2V Output: <0.02%
• Channel Separation: >80 dB
• CMRR: -73 dB Balanced / -29 dB Unbalanced
• Frequency Response: 10 Hz – 30 kHz
• Subsonic Filter: 27 Hz – 72 Hz
• Current Draw: 230 mA
• Interchannel Gain Tracking: 0.1 dB
• Fuse Rating: 1A
• Dimensions: 3.98” x 6.38” x 2.09”
