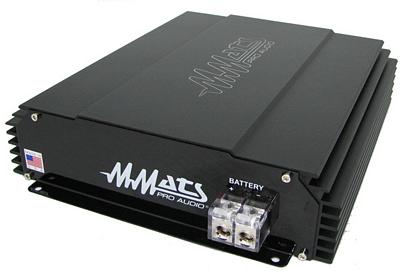

MMats SQ4100 4 x 100 at 4 Ohm Audiophile 4 Channel Amplifier Made in the USA
|
SQ4100
|
Thunder AV Price: $739.00
Call/Email for Availability
Detailed Description
MADE IN THE USA!!!
When sound quality is your most important criteria, choose an SQ Series amplifier which features the same high performance output topology as esoteric home equipment.
- Toshiba audio-grade outputs
- High current connectors
- Independent gain controls
- 24db variable crossover
SPECIFICATIONS
SQ4100 SQ4160
POWER @ 13.8 Volts:
RMS @ 4 ohms stereo 4 X 100 4 X 160
RMS @ 2 ohms stereo 4 X 110 4 X 175
RMS @ 4 ohms mono 2 X 220 2 X 350
Idle Current: 1 amp 1.5 amps
Signal to Noise Ratio A-Wtd: <100dB <100dB
Total Harmonic Distortion: 0.04% 0.04%
Channel Separation: <80dB <80dB
Input Sensitivity: 150mV-5V 150mV-5V
Slew Rate: 15V / Usec 15V/Usec
Fuse Rating: 30 amp 60 amp
Dimensions:
Height: 2.25” 2.25”
Width: 11.375” 11.375”
Length: 14.375 19.375
General Information:
Frequency Response: <10Hz to 22KHz
Lowpass Filter: Variable 24db, 60 to 360Hz
Crossover: Lp / Hp / Off
Battery Connetors: 4 Gauge
Speaker Connectors: 8 Gauge
