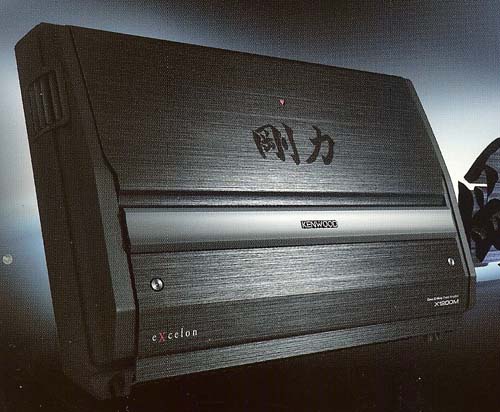

The Japanese kanji characters symbolize powerfulness. It is a character that stands for rigidity and strength. The X1200M delivers the highest levels of output power possible thanks to its Dual Power Supply that reduces voltage loss allowing the amplifier to perform under extreme demands.

General Features
Powerful Amplifier Series
Class D Mono Power Amplifier
Dual Power Supply
Digital Drive
1 Ohm Load Capability
Thermal Management
Power MOS-FET Switching Power Supply
Optional Bass Boost Wired Remote (KCA-WR10)
Cast Aluminum Heat Sink Design
Dual Cooling Fans
Double-Sided Glass Epoxy Circuit Boards
Hexagon Screw Type 4AWG Terminal Blocks - Power/Ground
Hexagon Screw Type 8AWG Terminal Blocks Speaker Output
Single-Side Exposure Of Terminals For Multi-Installation
Line Output Terminals For Extension
2-Year Warranty

Class D Amplifier
For subwoofer applications, Class D amps are beautifully efficient and their small size offers installation flexibility. Before amplifying an incoming signal, a Class D amp converts the signal to digital. Digital signals can be amplified very efficiently, so you get a lot more power with less current. Less input current reduces power supply size and generates less waste heat, thus reducing the heat sink size. The amp then converts the amplified signal back to analog.

Dual Sigma Drive
This advanced negative feed back circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it wont stop moving once its in motion. This extra movement (sound) creates a type of distortion thats not part of the original signal. The negative feedback circuit senses this unwanted movement and send out an opposite pulse to stop the speaker like an electronic brake.

Dual Power Supply
This design provides one power supply for positive current and one power supply fro negative current. The result is cleaner voltage source, less failure due to short circuit or power loss due to variances in transformer tolerances, and less transformer noise even when the positive and negative loads are unstable!

Infrasonic Filter
The infrasonic filter eliminates inaudible ultra low frequencies that can cause unwanted distortion. The filter can be adjusted between 15Hz to 40Hz depending on the subwoofer and enclosure being used.

Variable Low Pass Filter
The built-in variable LPF allows the user to select a variable frequency and remove damaging high frequencies from the subwoofer pathway for more bass output with less distortion.

Bass Boost Wired Remote Ready
This optional KCA-WR10 wired remote allows bass boost frequency adjustments and level adjustments for bass. For example you could add a 8dB boost at 43Hz by simply adjusting the position of the knobs. If you are using two amps, you can use a phone splitter so one bass boost can operate both amps.

Specifications
RATED OUTPUT POWER (14.4V):
800W RMS x 1 @ 4?
(20Hz-200Hz @ 1%THD)
1200W RMS x 1 @ 2?
(100Hz @ 1% THD)

RMS POWER OUTPUT (CEA-2006)
800W RMS x 1
(RMS @ 4?, 1% THD+N)
75dBa Signal-To-Noise Ratio

BUILT-IN CROSSOVER CONTROL:
Variable Low-Pass Filter: 50Hz-200Hz (-24dB/oct)
Variable Infrasonic Filter: 15Hz-40Hz (-24dB/oct)

TERMINALS:
Battery: Hex Type (4 AWG)
Ground: Hex Type (4 AWG)
Speaker: Hex Type (8 AWG)

Operating Voltage: 14.4V
Current Consumption: 90A
S/N Ratio: 105dB
Frequency Response: 20Hz-200Hz
Input Sensitivity: 0.2V - 5.0V

Installation Size:
Width: 14-15/16 (380mm)
Height: 2-5/8 (66mm)
Depth: 11-1/4 (286mm)
Weight: 11.0 lbs. (5Kg)
FACTORY REFURBISHED
