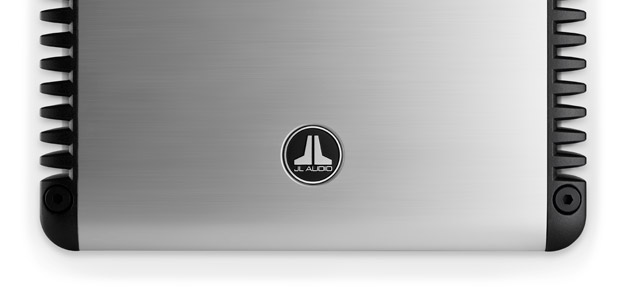

JL Audio HD750/1 Class D 750 RMS 1 Ohm Monoblock Full-Range Amplifier
|
HD750/1
|
Retail Price: $699.99
Thunder AV Price: $529.95
You Save: $170.04 (24 %)
Call / Email for Availability
Detailed Description
- Description: Class D Monoblock Full-Range Amplifier
- Patented Technology: Class D, switching type with patented Single-Cycle Control technology. (U.S. Patent #6,084,450*)
- Differential-Balanced Input Topology: 1 pair of inputs
- On-board Crossover: State-variable, 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley, Low-Pass or High-Pass
- Preamp Output: 2-channel, buffered pass-through type
- Bass EQ: Remote Level Control (with optional HD-RLC)
- Infrasonic Filter: 24dB/octave fixed cutoff of 30 Hz, defeatable
- Output Polarity Reversal: Normal or Reversed, via switch
- Dual mono speaker output connections: Accept up to 12 AWG wire +12V and Ground connections: Accept up to 4 AWG wire
- Notes: R.I.P.S. Regulated, Intelligent Power Supply, RealSink Heat-Management System, *Patented technology used under exclusive license for mobile audio from PowerPhysics, Inc. - Newport Beach, CA
- Rated Power: 750 W RMS @ 1.5 ohm - 4 ohm (11V-14.5V)
- THD at Rated Power: <0.03% @ 4 ohm
- S/N Ratio: >110dBA below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Frequency Response: 6 Hz - 30 kHz (+0, -1dB)
- Damping Factor: >500 @ 4 ohm / 50 Hz >250 @ 2 ohm / 50 Hz
- Input Range: Switchable from 200mV-2V RMS to 800mV-8V RMS
- Dimensions (L x W x H): 10.74 in. x 8.29 in. x 1.93 in. 273 mm x 211 mm x 49 mm (Width Measurement Includes Plugs)
