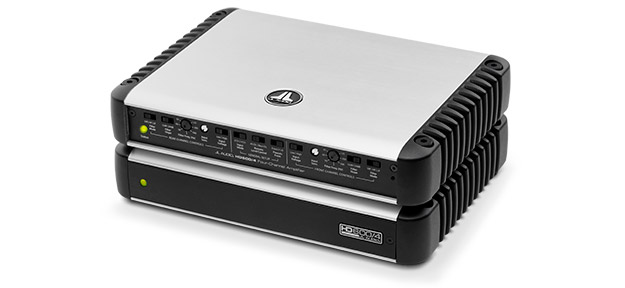

JL Audio HD600/4 Class D Four-Channel 150 RMS / ch Full-Range Amplifier
|
HD600/4
|
Retail Price: $799.99
Thunder AV Price: $599.95
You Save: $200.04 (25 %)
Call / Email for Availability
Detailed Description
Description: Class D Four-Channel Full-Range AmplifierPatented Technology: Single Cycle Control (U.S. Patent #6,084,450*)Differential-Balanced Input Topology: 2 pairs of inputsOn-board Crossover: State-variable, 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley, Low-Pass or High-Pass for each pair of channelsSpeaker output connections: Accept up to 12 AWG wire+12V and Ground connections: Accept up to 4 AWG wireNotes: R.I.P.S. Regulated, Intelligent Power Supply, RealSink Heat-Management System,*Patented technology used under exclusive license for mobile audio from PowerPhysics, Inc. - Newport Beach, CAHD600/4 Class D Four-Channel Full-Range Amplifier Specifications: HD600/4Rated Power (4 Channel Mode): 150 W RMS x 4 @ 1.5 ohm-4 ohm (11V-14.5V)Rated Power (Bridged to 2 Channel): 300 W RMS x 2 @ 3 ohm-8 ohm (11V-14.5V)THD at Rated Power: <0.03% @ 4 ohm per ch.S/N Ratio: >110 dB below rated power(A-weighted, 20 Hz - 20 kHz noise bandwidth)Frequency Response: 6 Hz - 30 kHz (+0, -1dB)Damping Factor: >300 @ 4 ohm per ch. / 50 Hz>150 @ 2 ohm per ch. / 50 HzInput Range: Switchable from 200mV-2V RMS to 800mV-8V RMSDimensions (L x W x H): 10.74 in. x 8.29 in. x 1.93 in.273 mm x 211 mm x 49 mm
