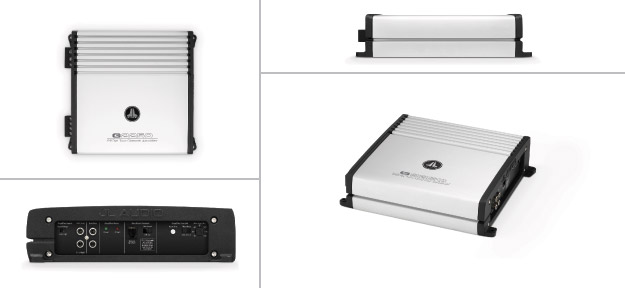

JL Audio G2250 80 Watts RMS at 4 Ohms Class A/B Two-Channel Full-Range Amplifier
|
G2250
|
Retail Price: $299.99
Thunder AV Price: $179.95
You Save: $120.04 (40 %)
Call / Email for Availability
Detailed Description
Description: Class A/B Two-Channel Full-Range AmplifierPatented Technology: Absolute Symmetry Class A/B Circuit (U.S. Patent #6,294,959)Differential-Balanced Input Topology: For superior noise immunity, RCA jack inputsOn-board Crossover: State-variable, 12dB / octave Butterworth with continuously variable cutoff frequency selection from 50 200 Hz. Configurable as Low-Pass or High-PassPreamp Output: Pass-through typeBass EQ: +6 dB fixed frequency, fixed 'Q' (defeatable) with port for optional remote bass control (RBC-1)Speaker output connections: Accept up to 8 AWG wire+12V and Ground connections: Accept up to 4 AWG wireRated Power 14.4 V Stereo: 80 W RMS x 2 @ 4 ohm125 W RMS x 2 @ 2 ohmRated Power 14.4 V Bridged : 160 W RMS x 1 @ 8 ohm250 W RMS x 1 @ 4 ohmRated Power 12.5 V Stereo: 60 W RMS x 2 @ 4 ohm90 W RMS x 2 @ 2 ohmRated Power 12.5 V Bridged: 120 W RMS x 1 @ 8 ohm180 W RMS x 1 @ 4 ohmTHD at Rated Power: <1% THD, 20 Hz - 20 kHzS/N Ratio: >104 dB referred to rated power (A-weighted, 20 Hz 20 kHz noise bandwidth)Frequency Response: 10 Hz 25 kHz (+0, -1dB)Damping Factor: >200 @ 4 ohm per ch. / 50 Hz>100 @ 2 ohm per ch. / 50 HzSlew Rate: 22V / sInput Range: 200mV 8V RMSDimensions (L x W x H): 9.80 in. x 9.25 in. x 2.50 in.250 mm x 235 mm x 63.5 mm
