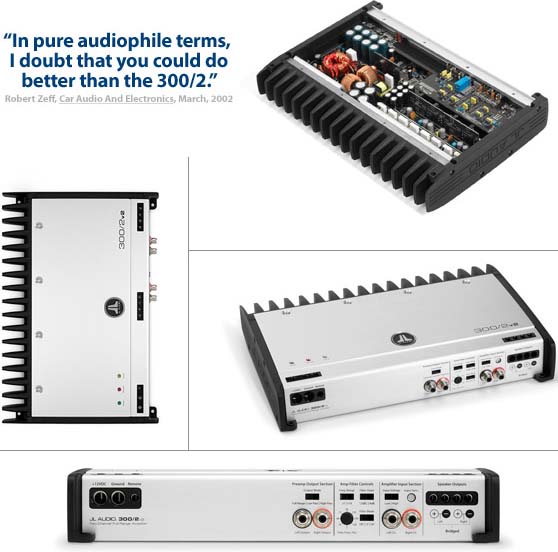

JL Audio 300/2v2 2 Channel 150 RMS Per Channel AudioPhile Amplifier
|
300/2v2
|
Retail Price: $499.99
Thunder AV Price: $349.95
You Save: $150.04 (30 %)
Call / Email for Availability
Detailed Description
- Rated Power (2 Channel Mode): 150 W RMS x 2 @ 1.5 ohm-4 ohm (11V-14.5V)
- Rated Power (Bridged Mono): 300 W RMS x 1 @ 3 ohm-8 ohm (11V-14.5V)
- THD at Rated Power: <0.03% @ 4 ohm per ch.
- S/N Ratio: >108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Frequency Response: 5 Hz - 30 kHz (+0, -1dB)
- Damping Factor: >200 @ 4 ohm per ch. / 50 Hz
- >100 @ 2 ohm per ch. / 50 Hz
- Slew Rate: ±25 V / µS @ 4 ohm per ch.
- Left to Right Channel Separation: >75 dB @ 1 kHz
- Input Range: Switchable from 200mV-2V RMS to 800mV-8V RMS
- Dimensions (L x W x H): 13.40 in. x 9.25 in. x 2.27 in. 340 mm x 235 mm x 58 mm
- Description: Class A/B Two-Channel Full-Range Amplifier
- Patented Technology: Absolute Symmetry Class A/B Circuit
- Differential-Balanced Input Topology: 1 pair of inputs
- On-board Crossover: Fully-variable (50 Hz - 5 KHz), selectable-slope / mode (12 or 24 dB per octave LP or HP)
- Preamp Output: Selectable as pass through, tracking LP or tracking HP
- Speaker output connections: Accept up to 8 AWG wire
- +12V and Ground connections: Accept up to 4 AWG wire
- Notes: R.I.P.S. Regulated, Intelligent Power Supply, RealSink Heat-Management System
