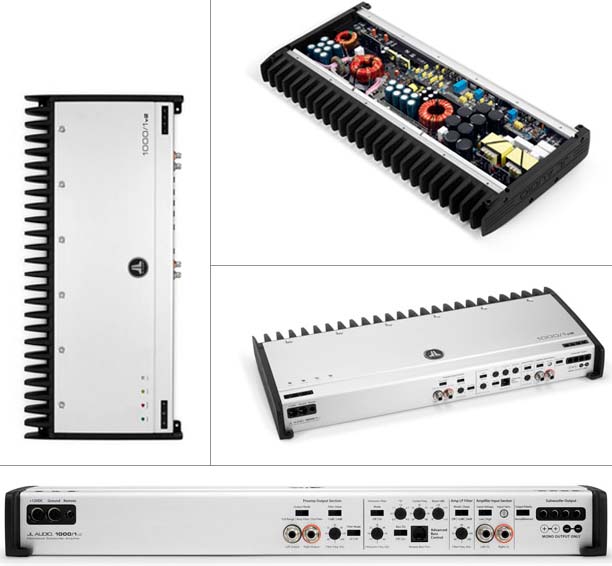

JL Audio 1000/1v2 1000 Watt RMS Audiophile Mono Subwoofer Amplifier
|
1000/1v2
|
Thunder AV Price: $699.95
Call / Email for Availability
Detailed Description
- Rated Power: 1000 W RMS @ 1.5 ohm - 4 ohm (11V-14.5V)
- THD at Rated Power: <0.05% @ 4 ohm
- S/N Ratio: >95dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Frequency Response: 5 Hz - 250 Hz (+0, -1dB)
- Damping Factor: >500 @ 4 ohm / 50 Hz
- Input Range: Switchable from 200mV-2V RMS to 800mV-8V RMS
- Dimensions (L x W x H): 19.70 in. x 9.25 in. x 2.36 in. 500 mm x 235 mm x 60 mm
- Description: Class D Monoblock Subwoofer Amplifier
- Patented Technology: High-Damping Class D Circuit with discrete control circuitry (U.S. Patent #6,441,685)
- Differential-Balanced Input Topology: 1 pair of inputs
- On-board Crossover: Fully-variable (40 - 200 Hz), selectable-slope (12 or 24 dB per octave) LP
- Preamp Output: 2-channel (independent active filter, parallel with amplifier filter or pass through)
- Bass EQ: Single-band parametric with variable boost up to +15dB and Remote Bass Option
- Infrasonic Filter: Fully-variable 24dB/octave from 15-60 Hz
- Output Polarity Reversal: Switch permits instant output polarity reversal
- Dual mono speaker output connections: Accept up to 8 AWG wire
- +12V and Ground connections: Accept 4 AWG wire (required)
- Notes: R.I.P.S. Regulated, Intelligent Power Supply, RealSink Heat-Management System
