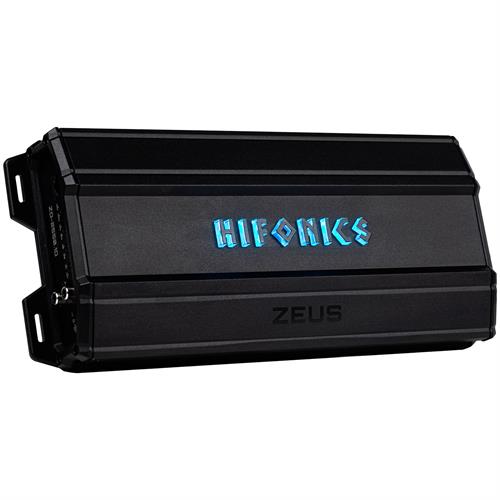

Hifonics ZD-2550.1D ZEUS DELTA 2500W RMS at 1 Ohm Class D Mono Block Subwoofer Amplifier
|
ZD-2550.1D
|
Retail Price: $249.99
Thunder AV Price: $189.99
You Save: $60.00 (24 %)
* Whole number only
Detailed Description
Authorized Hifonics Dealer SKU: 806576234081Hifonics ZEUS DELTA mono block amplifier delivers 2550 watts that features PWM MOSFET power supply for maximum current levels.
| Compatible Vehicle Fitment |
Universal
|
|---|
| Low Noise Preamplifier Circuit |
Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
|
|---|
| RCA Inputs |
Nickel plated high temperature impact resistant that allow for secure connections and is erosion resistant.
|
|---|
| Operation Mode |
Mono only
|
|---|
| Crossover Type |
Onboard electronic crossover
|
|---|
| Electronic Equalizer |
Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
|
|---|
| Class / Topology |
Class D: High efficiency with big power in a small footprint.
|
|---|
| Output Device Technology |
PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.
|
|---|
| Heat Sink |
Aluminum: Modern Design Hifonics Heat sink for Superior Heat Dissipation.
|
|---|
| Power Supply |
Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.
|
|---|
| Connection Type |
Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.
|
|---|
| LED System Protection Circuitry Diagnostics |
Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
|
|---|
| Bass Remote Included |
Yes
|
|---|
| Auto Turn-On |
DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.
|
|---|
| Weight |
7.23 lbs |
|---|
| Dimensions |
17.12 × 6.89 × 3.15 in |
|---|
| Item Weight (lbs) |
6.04
|
|---|
| Item Length (in) |
13.62
|
|---|
| Item Width (in) |
5.75
|
|---|
| Item Height (in) |
2.16
|
|---|
| Type |
Amplifier
|
|---|
| Brand |
Hifonics
|
|---|
| Series |
ZEUS DELTA
|
|---|
| Category |
Mobile
|
|---|
| Condition |
New
|
|---|
| Color |
Black
|
|---|
| Warranty |
1 Year
|
|---|
| Compatible Vehicles |
Universal
|
|---|
| Amp Class |
Class D
|
|---|
| Amp Total Channels |
1
|
|---|
| Amp Max Power (watts) |
2550
|
|---|
| Amp Power @ 1 Ohm (ch x watts) |
1 x 2550
|
|---|
| Amp Power @ 2 Ohms (ch x watts) |
1 x 1275
|
|---|
| Amp Power @ 4 Ohms (ch x watts) |
1 x 650
|
|---|
| Amp Crossover |
Variable Electronic 12dB Per Octave
|
|---|
| Amp Variable Low Pass Crossover 12dB per Octave |
50Hz-250Hz
|
|---|
| Amp Tone Control / Parametric EQ |
Built-in Bass Control
|
|---|
| Amp Bass Boost |
0-12dB
|
|---|
| Amp Subsonic Filter |
15Hz-40Hz
|
|---|
| Amp Variable Voltage |
0.2-6V
|
|---|
| Amp Frequency Response |
15Hz-250Hz
|
|---|
| Amp Total Harmonic Distortion (THD) |
< 0.1%
|
|---|
| Amp Speaker Level Audio Inputs |
Yes
|
|---|
| Amp Power Terminal 12v/GND |
4 AWG
|
|---|
| Amp Speaker Terminal Wire Gauge |
12 AWG
|
|---|
| Amp Fusing |
External 125A
|
|---|
