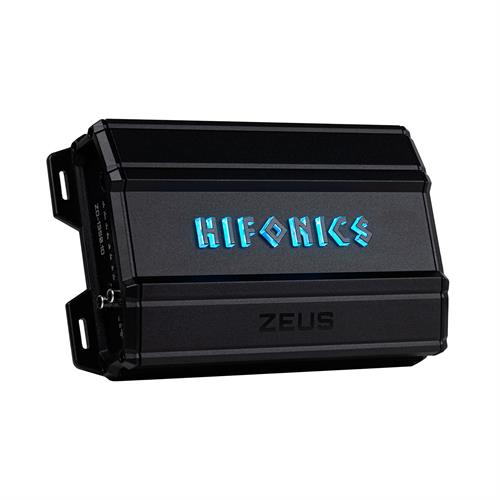

Hifonics ZD-1350.1D ZEUS DELTA 1350W RMS at 1 Ohm Class D Mono Block Subwoofer Amplifier

ZD-1350.1D

Retail Price: $199.99

Thunder AV Price: $149.99

You Save: $50.00 (25 %)

Quantity:

Authorized Hifonics Dealer

Compatible Vehicle Fitment	Universal
Low Noise Preamplifier Circuit	Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
RCA Inputs	Nickel plated high temperature impact resistant that allow for secure connections and is erosion resistant.
Operation Mode	Mono only
Crossover Type	Onboard electronic crossover
Electronic Equalizer	Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
Class / Topology	Class D: High efficiency with big power in a small footprint.
Output Device Technology	PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.
Heat Sink	Aluminum: Modern Design Hifonics Heat sink for Superior Heat Dissipation.
Power Supply	Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.
Connection Type	Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.
LED System Protection Circuitry Diagnostics	Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
Bass Remote Included	Yes
Auto Turn-On	DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.

Weight	5.3 lbs
Dimensions	13.19 × 6.89 × 3.15 in
Item Weight (lbs)	4.32
Item Length (in)	9.68
Item Width (in)	5.75
Item Height (in)	2.16
Type	Amplifier
Brand	Hifonics
Series	ZEUS DELTA
Category	Mobile
Condition	New
Color	Black
Warranty	1 Year
Compatible Vehicles	Universal
Amp Class	Class D
Amp Total Channels	1
Amp Max Power (watts)	1350
Amp Power @ 1 Ohm (ch x watts)	1 x 1350
Amp Power @ 2 Ohms (ch x watts)	1 x 675
Amp Power @ 4 Ohms (ch x watts)	1 x 350
Amp Crossover	Variable Electronic 12dB Per Octave
Amp Variable Low Pass Crossover 12dB per Octave	50Hz-250Hz
Amp Tone Control / Parametric EQ	Built-in Bass Control
Amp Bass Boost	0-12dB
Amp Subsonic Filter	15Hz-40Hz
Amp Variable Voltage	0.2-6V
Amp Frequency Response	15Hz-250Hz
Amp Total Harmonic Distortion (THD)	< 0.1%
Amp Speaker Level Audio Inputs	Yes
Amp Power Terminal 12v/GND	4 AWG
Amp Speaker Terminal Wire Gauge	12 AWG
Amp Fusing	External 80A
