• Low profile mount for a variety of placement options
• Inverted style cone design for maximum excursion in shallow mount applications
• High temperature voice with heat-sink attachment

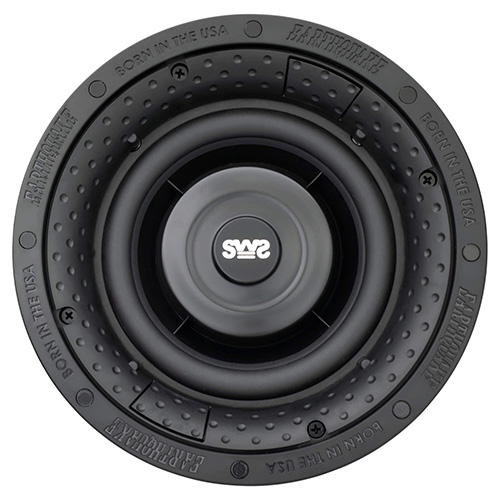

• Shallow mounting subwoofer with patented SWS technology
• Wide surround for deeper bass and higher speaker excursion
• Push type spring loaded terminals
• Easy to use Turn ‘N’ Lock installation mechanism
• Edgeless and paintable rust-resistant grilles
  • Round and square grilles included
• RK-C6 Rough-In Kit ready

Specifications

• Power Handling: 150 Watts MAX
• Woofer Size: 6.5″ (165mm)
• Voice Coil Diameter: 1″ (25mm)
• 100Hz LP 12dB/Oct filter network crossover
• Frequency Response: 30Hz–1kHz
• Sensitivity: 86.7dB
• Impedance: 8-Ohm

Dimensions

• Overall Diameter: 8.75″ (223mm)
• Cut Out Diameter: 7.75″ (196mm)
• Mounting Depth: 3.38″ (85.9mm)
• Weight: 2.46 lbs (1.12 kgs)
