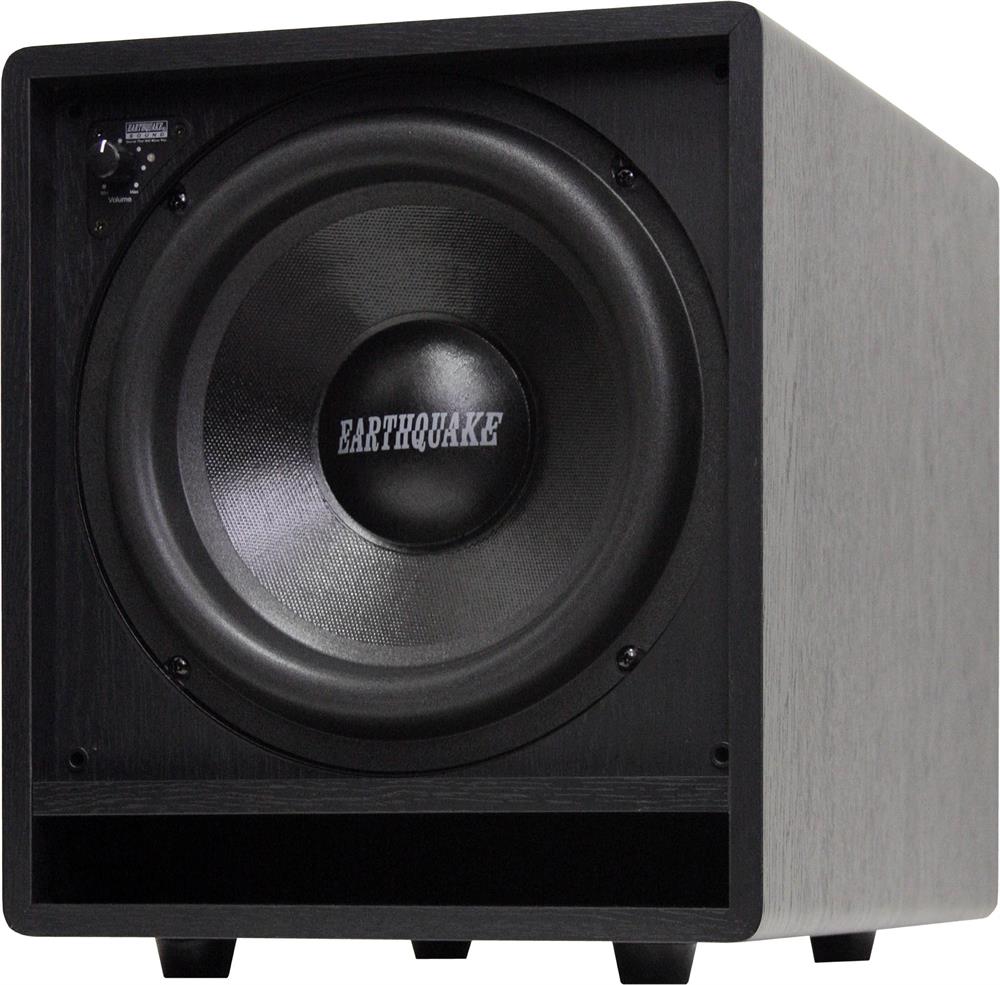

Earthquake’s FF12 Front Firing Subwoofer is an evolutionary step in the continued quest for superb bass performance. The FF series offers versatility, small footprint, and great looks all while staying surprisingly affordable. The powerful woofers used in the FF line have direct lineage to the lauded MiniMe subwoofers sporting massive excursion and high power handling. The amplifiers are refined descendants of the signature Sub-Series from Earthquake.

The third generation Earthquake FEA computer-modeled bass slot-port loading increases the output of the powerful woofer/amp combo. The new slot-port provides more port volume than possible with traditional tubular port loading resulting in radically increased low frequency output. Since it is not a tubular device, it can bend at optimum angles reducing cabinet size making the subwoofer both powerful and aesthetic. It also routes laminar airflow across the aerodynamically shaped internal amplifier heat-exchangers. This forced flow cooling technique enables the FF Series subwoofers to operate at continued high levels, even if fully built-in. The slot port is an integral part of the subwoofer and serves as a cross brace making the cabinet very strong and resonance free.

The advanced design features coupled with rational manufacturing are keys to the FF12’s unbeatable price and performance combination. All this boils down to the fact that the creation of the FF series subwoofers was no accident, rather the result of meticulous engineering building on a heritage of excellence.

Specifications

• 12″ high power subwoofer
• Built-in 400 watts class A/B high efficiency power amplifier
• Front firing design with small footprint
• Single front slot port for optimized bass output
• 24dB/Octave variable filter from 40Hz–180Hz
• Frequency Response: 25Hz–125Hz
• 0–180° phase shift
• Front mounted volume control knob
• Automatic signal detection circuitry
• Low level (RCA) audio inputs
• Line through (RCA) audio outputs
• High level audio inputs
• Full range line through (high level) speaker outputs
• Also available in 6.5″ and 10″ models

Dimensions

• H x W x D: 16.92″ (430mm) x 14.17″ (360mm) x 15.74″ (400mm)
• Weight: 37lbs (16.8kgs)

Other Information

Model: FF12
EAN: 0068975900671
Priced and sold by the piece
