Working ignition key required for operation.
Universal Proximity Key Bypass is a remote start interface used to temporarily override Push to Start ignition systems when installing an aftermarket remote start.
Product Description

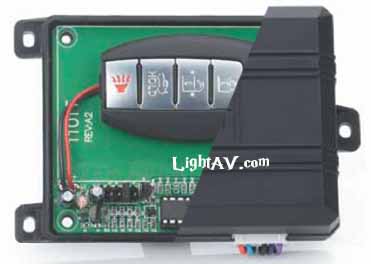

Universal proximity key bypass module is a remote start interface used when installing a remote car starter in a vehicle equipped with a hands free proximity RFID engine immobilizer system. This type of system detects the proximity of the factory remote control and allows engine start up by pushing a button on a dash. Push-to-Start and Smart Key are common terms used to describe this type of proximity ignition system. This unique RFID is detected by a receiver antenna in the vehicle which then sends the ID information to the factory immobilizer for authentication.
Once an authorized ID signal is received, the immobilizer system will enable the ignition and/or fuel management system. If an attempt is made to start the vehicle and the transceiver does not receive a valid code, the ignition and sometimes the fuel systems are disabled. The immobilizer system effectively prevents remote start up. 1101T
provides power to the key and introduces the FOBs authorized RFID only while the Remote Starter system is activated. When the Remote Starter system is not in use the integrity of the factory immobilizer system is maintained and is fully functional.
Notes:
Requires use of vehicle proximity remote TX.
Product Features
Built-in Coin Cell Battery Adapter (replaces the coin cell battery in the prox key)
Simple to install - No soldering or hardwiring to FOB circuit board
Compatible with any Push to Start Smart key ignition system
Compatible with any remote car starter system
Simple installation
No programming required
Installer friendly jumper feature easily matches insert battery voltage to the FOB battery.

Specification
Weight: 0.3lbs (0.14kgs)
Dimensions: 95 x 32 x 70 mm (L x W x H)
6 Pin connector
Wire to Wire (W2W)
Compatibility
05-08 Acura RL
07 Audi A6/A8
05-08 Cadillac STS
05-08 Chevrolet Corvette
05-08 Infiniti FX35/FX45
04-08 Infiniti G35
08 Infiniti G38
07-08 Lexus ES350, GS350, GS450, IS250, IS350
LS460
07-08 Mazda CX-7/CX-9
06-08 Mazda Speed6
06-08 Mazda MX-5 Miata
06-07 Mazda RX-8
07 Mercedes CLS 550
07 Muitsubishi Outlander
07-08 Nissan Maxima/Altima
05-07 Nissan Murano
06-07 Suzuki Grand Vitara
05-08 Toyota Avalon
07-08 Toyota Camry Hybrid/XLE
04-08 Toyota Prius
08 Volvo C30
07-08 Volvo S80
07 Volvo V50
