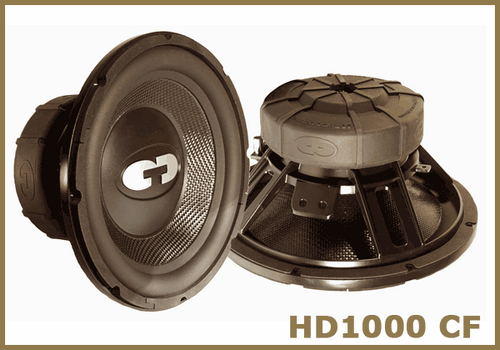

CDT Audio HD-1000CF 10" 250 Watt RMS Carbon Fiber SQ Subwoofer
|
HD-1000CF
|
Retail Price: $299.99
Thunder AV Price: $249.99
You Save: $50.00 (17 %)
* Whole number only
Detailed Description
High Definition Cast Alloy Audiophile Carbon Fiber Subwoofer Series:
Understanding how the basic design differences influence the new CDT HD-Series subwoofers and how they compare with ordinary subwoofers will enable you and your installer to design a sound system both advancing your listening preferences and exceeding your listening expectations. The HD Carbon Fiber subwoofers are designed for both audiophile & SPL user. The subwoofers are designed for the smooth jazz listeners who sometimes like to turn the volume up on some heavy rock and metal but still with a feel of smooth tight fast bass response. These engineering masterpieces simultaneously deal with the need to move large amounts of air necessary to overcome the 70+ db. of bass masking road noise in the moving automotive interior, while accurately responding to the delicate changes in the harmonic structure of the music.
These new 8 10 12 master piece High Definition Carbon Fiber subwoofers are easy to install very flexible subwoofers, easy to fit in multi size enclosures and offer special unique impedance wiring options. You can run these subwoofers in 4 Ohm, 2X2 Ohm stereo or 1 Ohm which ever impedance option suits your install the best.
Specifications
Cone Carbon Fiber
Diameter: 10 (250mm)
Sensitivity: 87.3 dB
Power Handling: 250 WRMS (500W Pk)
Frequency Response: 10 ~ 400 Hz
Nominal Impedance: 2X2 Ohms
Voice Coil Diameter: 1.95 (49.55mm)
Xmax: 5mm
Magnet Weight: 40 Oz
HD-1000CF DVC 10
Subwoofer Technical Data
Free Air Resonance: 33.6 Hz
Voice Coil DC Resistance: 3.44 Ohms (series) 2X1.72
Voice Coil Inductance @ 1 kHz: 2.43 mH (series)
Mechanical Q (Qms): 5.785
Electrical Q (Qes): 0.47
Total Q (Qts): 0.435
Compliance Volume (Vas): 41.7l; 1.47 ft3
Moving mass, Diaphragm: 102 Gr
Motor Force Factor: 12.44 Tm
Mounting Depth 4.43 (93.7mm)
Outer Cutout 10.28 (210mm)
Inner Cutout 9.17 (188.8mm)
