CDT Audio ES-62iUS Eurosport 6.5 Inch 2 Way Audiophile Component Set with WS-100i Upstage Kit 200 RMS

Email this page to a friend

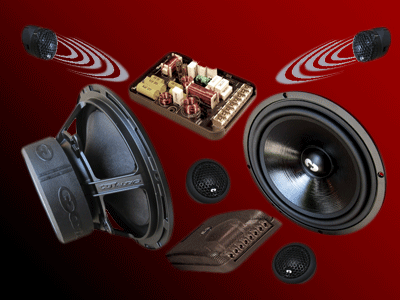

CDT Audio ES-62iUS Eurosport 6.5" 2 Way Audiophile Component Set with WS-100i Upstage Kit 200 RMS

ES-62iUS

Thunder AV Price: $799.99

Quantity:

Add to a new shopping list

Detailed Description

Complete StageFront Technology UpStage Component The HD-62US Complete Component UpStage System was developed by CDT StageFront Audio engineers to create a superior live event listening experience in vehicles of all types. This compact UpStage Ready xover module implements the image enhancing upstage system while holding complexity to an absolute minimum. This versatile crossover module implements the EX-560i two-way crossover with large high quality parts or alternately may be programmed to drive an upstage high-mounted second Tweeter. This dual functionality is jumper selectable. In simple two-way mode the tapped inductor design Dual jumpers moved together change the crossover to upstage mode. In the upstage mode the drive to the mid-woofer and Tweeter are tapered off to interface with the upstage Tweeter. This tapering is adjustable with three L settings and two C settings. This alters the crossover frequency and response shape (damping). The image Tweeter furthermore has seven selectable levels available. Upstage crossover is typically at 8kHz. Main Tweeter crossover is transient optimized at 3.7kHz. No protectors are used.

Technical specs and contents:

1 pr HD-6 6.5" Cast carbon reinforced

1 pr ES-200US "Transient Optimized" Elliptic 24dB xover with Built-in UpStage design

1 pr DRT-25 1 main tweeter

1 pr WS-100i 1 silk UpStage image tweeter

Power handling: 200WRMS @ HPF 100Hz

Frequency response: 65-20kHz

Sensitivity: 92.6 dB. Impedance: 4 Ohm

Mounting dept: 2 3/4"

Main tweeter flush and surface mount housings

All Sound Above The Dash!

StageFront UpStage Ready System , remove the distracting and low image sound effects from your conventional systems drivers and move your sound onto a seamless sound stage directly in front of you up above the dash.

Product Reviews

(0 Ratings, 0 Reviews)

Condition: New
