CDT Audio ES-62iM Eurosport Gold 6.5" 2 Way Slim Inverted Neo Magnet Audiophile Component Set 190 RMS
|
ES-62iM
|
Retail Price: $899.99
Thunder AV Price: $849.99
You Save: $50.00 (6 %)
* Whole number only
Detailed Description
No Listening Fatigue - Remarkable Up-Front Soundstage
Introducing the most advanced design quality inverted-magnet shallow-mounting universally applicable 6.5mid-woofer. From the highest quality 38 mm voice coil to the dual layer laminated fiberglass fabric cone structure this driver sets the standard in modern design and classic quality. Dual rare earth magnets grace the handsome sculpted magnet structure with the distinctive PSS Logo. Framed in black powder-coated cast aluminum and capped in the rear with a heavy steel back plate this driver leaves nothing to be desired in a compact high quality, high performance mid-woofer.
In contrast to weak designs of the past, the unprecedented powerful robust magnet structure equals or exceeds the motor power of large ceramic structures. This large magnetic structure also possesses superior cooling and is integrated with the acoustics of the cone to improve dispersion and in most installations the sound distribution is actually improved compared to bulky ceramic designs of the past Heavy duty lead wires are embedded in the spider similar to high-end subwoofers and connections are via gold-finished binding posts. Differential fabrics of black fiberglass are laminated to form the cone and thereby ultra-low distortion smooth response and rigid piston-action bass is achieved. The rubber surround molded from the best synthetic elastomers is of the highest quality for damping, quietness and long life. Your search for a top of the line component set ends here!

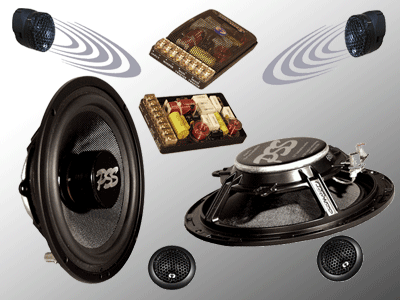

Technical specs and contents:
1 pr ES-6iM -6 6.5 inverted magnet woofer
1 pr EX-550i/25 24dB Ellitpic 4th/5th order 2-way crossover
1 pr DRT-26 modular 1 silk tweeter (aluminum and titanium flavor optional)
Power handling: 190 watt RMS @ HPF 100Hz
Frequency response: 30Hz-20.000Hz (optimal ported enclosure)
Impedance: 4 Ohm Sensitivity: 91.7dB
Mounting depth 6.5 woofer 1.9
Flush and surface tweeter housings
Installation:
Most installations will be actively adjusted and fitted in the tight spaces required. However if active multi?amp installation was not done and the driver was desired to operate full range, an optimal ported box could be utilized.
For a medium sedan the following design center provides a response to 30Hz in the vehicle
Enclosure volume=0.5 cubic feet Port= 2 diameter by 9long
"The Silver Bullet" EX-550i/25
"Transient Optimized" crossover design
The lower crossover frequency of 2.5kHz avoids dispersion and response anomalies in the mid-woofer to tweeter transition seen when crossing over at higher frequencies. This lower crossover frequency provides superior blending in a range of installations and with various drivers.
Below the 2.5kHz crossover frequency the tweeter is attenuated 24dB at 1.25kHz. This is at just 1/2 the crossover frequency. This rapid roll off is very effective especially at this lower crossover frequency in providing protection for the tweeter in high power systems. A two position woofer response "crossover trim" corrects response differences seen between a range of mid-woofers from 4" to 6.5". Combine this with the 5 tweeter level settings to get a smooth natural sound.
Testimonial:
On to the vocals... The imaging using this tweeter was a treat - right out in front of me - and floating in thin air. Yet when I sat in the driver's seat - same thing - imaging straight in front of me and hanging in mid-air. Absolutely amazing! Don't hesitate to pull the trigger and put this superior imaging tweeter system in your ride. You WON'T be disappointed!
