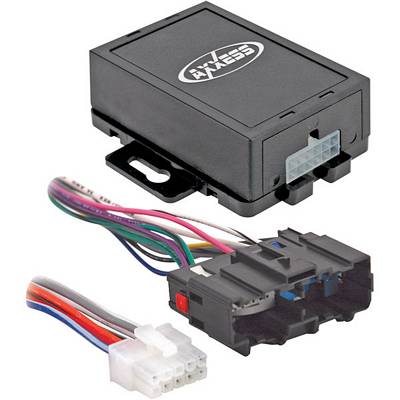

The GMOS-LAN-01 interface is designed to allow the user to replace the OEM radio with an aftermarket unit in non-amplified 2006-07 GM vehicles that use the new GMLAN data bus system and retains full functionality of the Onstar system as well as all safety and warning chimes. The GMOS-LAN-01 will also retain the retained accessory power convenience features. This interface has the capability of adjusting chime and Onstar volumes as well. In addition to these features, the GMOS-LAN-01 now has the required outputs for the installation of a navigation radio.

GMOS interfaces allow the installer to replace OEM radio with an aftermarket unit

• Provides accessory (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

• Used in non-amplified systems or when replacing amplified systems

• Retains chimes

• Provides NAV outputs (Parking Brake, Reverse, Mute, V.S.S.)

• ASWC harness included (ASWC not included)

• Retains OnStar/OE Bluetooth

• Adjustable volume for chimes and OnStar

• High level speaker input

• USB updatable

• Retains balance and fade

• Retains factory back-up camera

• Includes antenna adapter

BUICK

Enclave 2007-up

Lucerne 2006-up

CADILLAC

Escalade 2007-up

DTS 2006-2010

SRX 2007-2009

CHEVROLET

Avalanche 2007-up

Equinox 2007-2009

Express 2008-up

Impala 2006-up

Monte Carlo 2006-2007

Silverado (new body) 2007-up

Suburban 2007-up

Tahoe 2007-up

Traverse 2009-up

GMC

Acadia 2007-up

Savana 2008-up

Sierra (new body) 2007-up

Yukon 2007-up

PONTIAC

Torrent 2007-2009

Vibe (For OnStar retention only) 2009

SATURN

Outlook 2007-2009

Vue 2008-2009

Suzuki

XL-7 2007-2008
