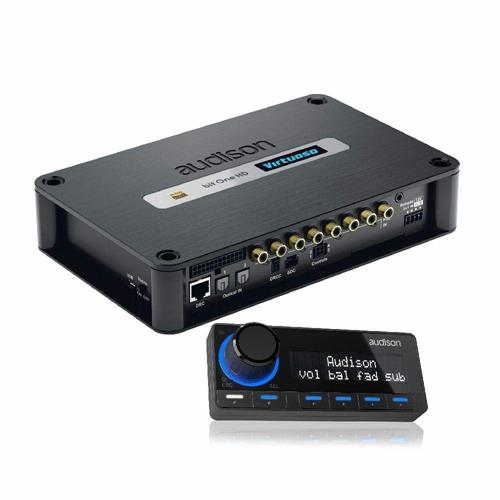

Audison Bit One HD Virtuoso 12 CH Input 13 Channel Output High Resolution DSP with Optical in-Out
|
Bit One HD Virtuoso
|
Retail Price: $2,145.00
Thunder AV Price: $1,949.99
You Save: $195.01 (9 %)
* Whole number only
Detailed Description
DSP | 12 input channels | 13 output channels | 24 bit / 96 kHz floating point processing
Just as the virtuous performer holds the absolute mastery of the instrument and the technique connected to it, the bit One HD Virtuoso features unique skills dedicated to the most ambitious OEM Integration projects and excels in the uncompromising Hi-End systems. This was made possible thanks to innovative functions born with the new software/firmware development and the upgrade of some key components in the audio signal path, which are crucial to reach new heights of listening pleasure. bit One HD Virtuoso allows the creation of an Audison Full DA HD (Full Digital Audio HD) system where the audio signal is transmitted digitally from the Hi-Res audio player to the Audison amplifiers equipped with AC / AD link inputs, preserving every nuance with maximum purity.
- Nominal power supply voltage / Fuse 11 ÷ 15 VDC
- Channels 13
- Sample Rate 24 bit / 96 kHz
- Hi Level Inputs 12
- Low Level Inputs 12
- Digital Inputs 2
- Processing Method Floating point
- Idling current 0.75 A
- Switched off without DRC MP 2 mA
- Switched off with DRC MP 5 mA
- Remote IN 4 ÷ 15 VDC (1 mA)
- Remote OUT 4 ÷ 15 VDC (130 mA)
- FUSE 2A
- SIGNAL STAGE
- Distortion - THD @ 1 kHz, 1 VRMS Output 0.004 %
- Bandwidth @ -3 dB 10 Hz ÷ 44 kHz
- S/N ratio @ A weighted, 4 V Output, 2 V MASTER input 105 dBA
- S/N ratio @ A weighted, 4 V Output, 2 V AUX input 110 dBA
- S/N ratio @ A weighted, 4 V Output, OPTICAL IN1/IN2 input 104 dBA
- Channel Separation @ 1 kHz 80 dBA
- Input sensitivity PRE IN / Master 1.3 ÷ 9 VRMS
- Input sensitivity Speaker IN / Master 5 ÷ 32 VRMS
- Input sensitivity AUX 0.7 ÷ 5 VRMS
- Input impedance Pre In 15 kΩ
- Input impedance Speaker In / AUX 5 Ω
- Max Output Level 0.1% THD 4 V
- INPUT STAGE
- Low level (Pre) Ch1 ÷ Ch6; AUX L/R
- High Level (Speaker In) Ch1 ÷ Ch12
- Digital 2 x Optical S/PDIF; Max 192 kHz/24 bit
- OUTPUT STAGE
- Low level (Pre) Ch1 ÷ Ch13 (IIR mode); Ch1 ÷ Ch 9 (FIR mode)
- Digital AD Link 1 Ch1 ÷ Ch8 (IIR / FIR mode)
- Digital AD Link 2 Ch9 ÷ Ch13 (IIR mode); Ch9 only (FIR mode)
- CONNECTION
- From / To Personal Computer 1 x micro USB
- To Audison Amplifiers 2 x (AC Link / AD LINK) control bus
- To Audison DRC MP 1 x AC Link
- CROSSOVER
- Filter type Full / High-Pass / Low-Pass / Band-Pass
- Filter mode and slope Linkwitz @ 12 / 24 / 36 / 48 dB Butterworth @ 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB Bessel @ 6 / 12 / 18 / 24 / 30 / 36 dB FIR @ 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB
- Crossover Frequency Lo-Pass: 0 ÷ 44k Hz (1 Hz step) Hi-Pass: 0 ÷ 20k Hz (1 Hz step)
- Phase control 0° / 180°
- TIME ALIGNMENT
- Distance 1.4 ÷ 756 cm / 0.6 ÷ 297.7 inches
- Delay 0 ÷ 22 ms
- Step 0.04 ms, 1.4 cm, 0.6 inch
- GENERAL REQUIREMENTS
- PC connections USB 1.1 / 2.0 / 3.0 Compatible
- PC OS Microsoft Windows (32/64 bit): XP, Vista, Windows 7, Windows 8, Windows 10
- Video Resolution with screen resize min. 800 x 600
- Ambient operating temperature range 0 °C to 55 °C (32°F to 131°F)
