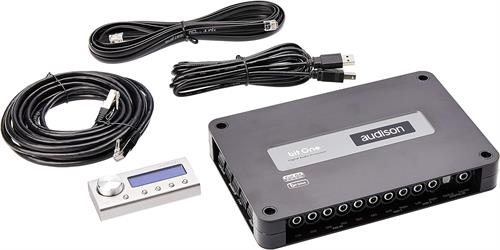

Audison Bit One.1 8 Channel In and Out 31 Band EQ with Crossover Digital Signal Processor DSP OPEN BOX
|
Bit One.1 B
|
Retail Price: $900.00
Thunder AV Price: $599.95
You Save: $300.05 (33 %)
* Whole number only
Detailed Description
B Stock Unit!
Despite its compact size, the bit One is equipped with a powerful 266 MHz / 32 bit floating point DSP microprocessor, working in real time on all the functions of the most complete systems. Managed and configured by a simple and intuitive computer software, it is possible to make adjustments to improve the signal through each phase of its path; from input to output.Eight input channels for four different signal typologies (amplified, pre-amplified, coaxial electric and TOSLINK optical digital) and six different sources managed through a remote control, making the bit One a unique interface suitable for any need.Eight analog and/or digital output channels ensure a wide expandability for any audio system configuration.
- Nominal power supply voltage / Fuse 11 ÷ 15 VDC
- Channels 8
- Sample Rate 24 bit / 48 kHz
- Hi Level Inputs 8
- Low Level Inputs 8
- Digital Inputs 2
- Processing Method Floating point
- Idling current 0.45 A
- Switched off without DRC MP < 0.5 mA
- Switched off with DRC MP < 1.8 mA
- Remote IN 7 ÷ 15 VDC (1.3 mA)
- Remote OUT 12 VDC (130 mA)
- SIGNAL STAGE
- Distortion - THD @ 1 kHz, 1 VRMS Output 0.002 %
- Bandwidth @ -3 dB 4.5 ÷ 21k Hz
- S/N ratio @ A weighted, 4 V Output, 2 V AUX input 102 dBA
- Channel Separation @ 1 kHz 77 dB
- Max Output Level 0.1% THD 4 V RMS
- INPUT STAGE
- Low level (Pre) Ch 1 ÷ Ch 6, AUX1 L/R, AUX2 L/R
- High Level (Speaker In) Ch 1 ÷ Ch 8, Phone In
- CROSSOVER
- Filter type Selectable; Hi-pass, Lo-pass, Bandpass, Full Range
- Filter mode and slope Full / Hi-Pass / Low Pass / Band Pass
- TIME ALIGNMENT
- Delay 0 ÷ 22 ms in 0,02 ms steps (748 cm / 294.5 in.)
- GENERAL REQUIREMENTS
- PC connections USB /B (2.0)
- PC OS Windows (Win 2000, XP, Vista, 7)
- Video Resolution with screen resize 1024 x 768 px min.
